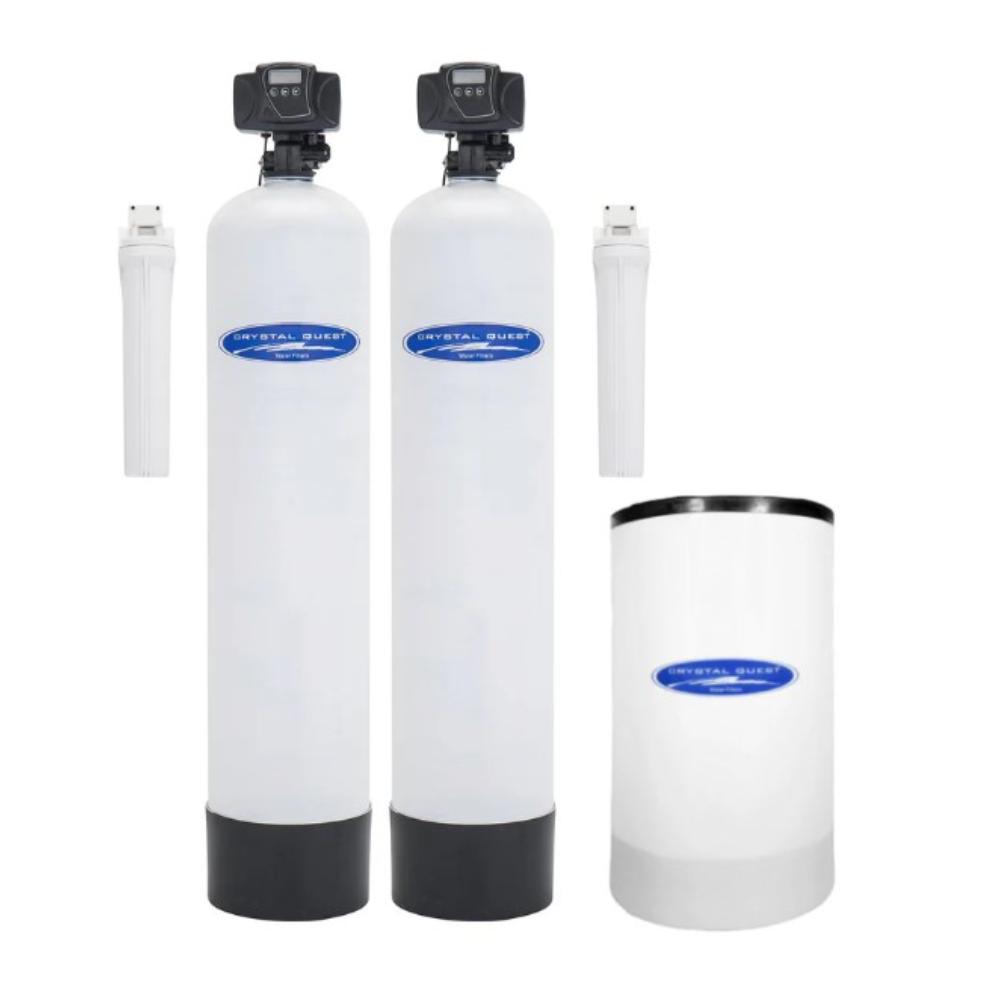

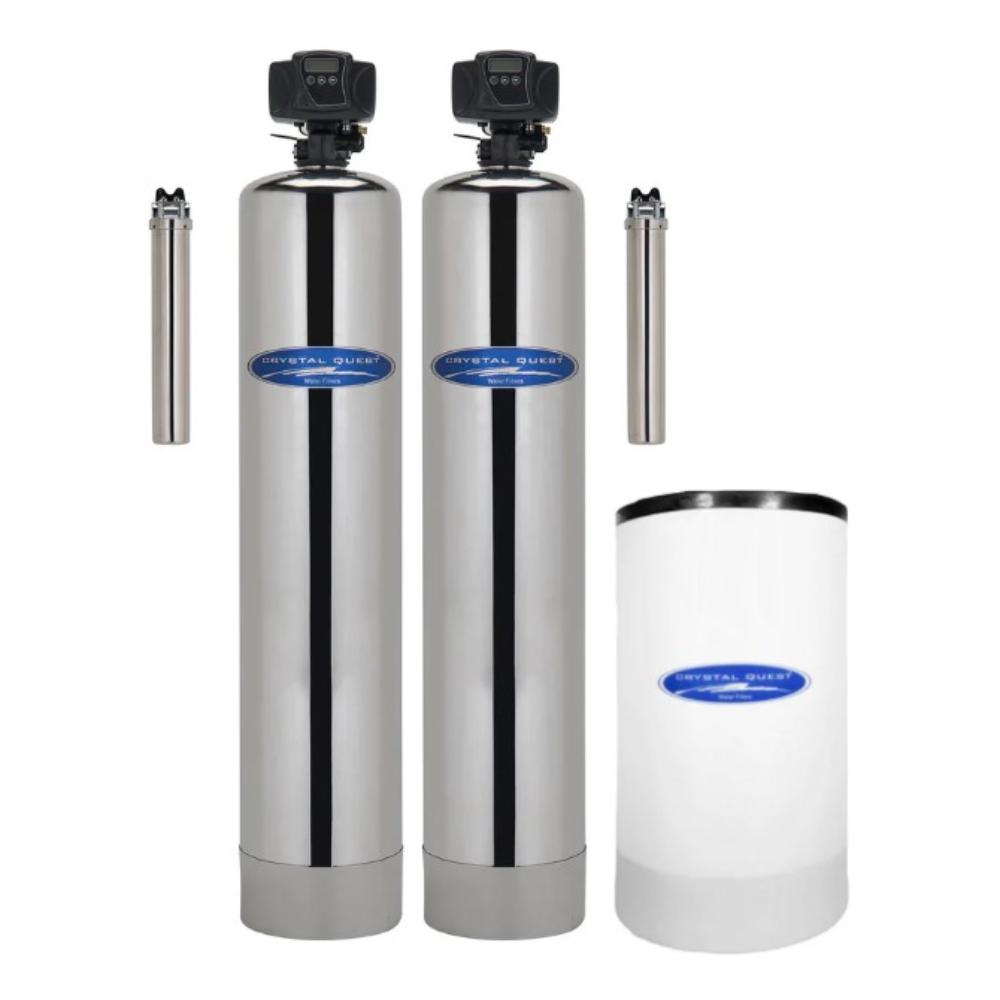

Crystal Quest Tannin Whole House Water Filter with Water Softener

Remove Tannin from Your Drinking Water

Our Tannin Water Filters are self-backwashing systems that automatically remove the tannins within the filter bed and washes them down the drain. This is accomplished with the microprocessor control valve that is mounted on top of the Crystal Quest® Tannin Water Filters. This valve is controlled by a meter that calculates the amount of water being used. Once the meter reaches "X" amount of gallons, it then initiates the backwash cycle that cleans the bed of filtration media and resets it for the next period of filtration. These systems connect to the main line of your home and filters all of the incoming water to it. It requires a nearby power outlet for the control valve. Low maintenance. Just add sodium or potassium pellets to the brine tank.

• Approx. Gallons of water to Regenerate: 40
• Maximum Removal Capacities: 5ppm Tannins and 40 grains hardness
• Maximum Iron and Manganese Levels: Combined Manganese and Iron levels must be below 0.2ppm

Pre-filtration

Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.

Post-filtration

Water flows through a 20" solid carbon cartridge for removing volatile organic carbon compounds (VOC's), & any remaining insecticides, pesticides and industrial solvents.

Tannin Removal Water Filter

Water flows through a tannin-reducing mineral tank.

SMART Water Filter (optional)

Water flows through our SMART Multimedia, which includes 2 types of coconut shell Granulated Activated Carbons (Standard & Catalytic GAC) infused with our Eagle Redox Alloys®  6500 & 9500, and ion exchange resin to reduce contaminants such as heavy metals, i.e. lead & mercury, chlorine, chloramine, & inorganic products such as herbicides, pesticides, petroleum/pharmaceutical by-products and Ceramic and Tourmaline balls to enhance the water and maintain a more alkaline pH.

Water Softener (optional)

Water flows through an ion exchange resin and brine water conditioner.

Media may increase hardness in the water which is why a water softener is recommended. Water is hard when it contains minerals like calcium and magnesium. You may see staining on your sinks, tubs, showers, and clothing. You may also notice less lather from your shampoos and soaps and even a feeling of film on your skin. All these are symptoms of the need for softened water. Hard water also causes a higher risk of limescale deposits in household water systems. The negative effect of limescale buildup is that pipes are blocked and the efficiency of hot boilers and tanks is reduced. This increases the cost of domestic water heating by about fifteen to twenty percent. Another negative effect of limescale is that it has damaging effects on household machinery, such as laundry machines. Water softening means expanding the lifespan of household machines, and the lifespan of pipelines. It also contributes to the improved working and longer lifespan of solar heating systems, air conditioning units and many other water-based applications.

Additional Product Options

• 12 GPM UV Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
• Leak Detector Valve: Used to detect a water leak within a water filter system and shuts down the water supply to prevent flooding.
• Vacuum Breaker: Recommended to be installed inline ahead of water filter systems as a precaution against the rare occurrence of negative pressure (a vacuum) in the water line which can cause damage to the filter tanks and housings.
• Metered Valve: The systems come standard with a timer valve which runs the backwashing schedule on a set number of days. (For example, every 7 days). The metered valve will run the backwashing based on a set number of gallons. (For example, 3,000 gallons).
• Oxidation System: Utilizes ozone for efficient water oxidation, improving water quality.

Important to Know

Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.

Specifications

Filter Media Volume - 1.5 cubic feet | 2.0 cubic feet

Capacity (gallons) - 1,000,000 for 1.5 cubic feet | 1,500,000 for 2.0 cubic feet

Service Flow (GPM) - 9-11 for 1.5 cubic feet | 10-13 for 2.0 cubic feet

Tank Dimensions - 10" x 54" for 1.5 cubic feet | 12" x 52" for 2.0 cubic feet

Material - Stainless Steel or Fiberglass

Backwash - Automatic

Brine Tank Dimensions - 18" x 33" for 1.5 cubic feet | 18" x 33" for 2.0 cubic feet

Grain Capacity - 48,000 for 1.5 cubic feet | 60,000 for 2.0 cubic feet
