Medical & Laboratory Water Filtration – Ultrapure Water for Critical Applications

Medical and laboratory water filtration systems deliver the ultrapure, reagent-grade water required for accurate diagnostics, research, pharmaceutical compounding, dialysis, autoclave feed, cell culture, HPLC, mass spectrometry, and other sensitive applications. These systems produce ASTM Type I (18.2 MΩ·cm), Type II, or Type III water, removing bacteria, endotoxins, DNase/RNase, TOC, ions, particulates, silica, and organics to levels that meet CLSI, CAP, ISO 3696, and USP standards. Safe Aqua Solutions provides NSF-certified and validated laboratory water purification systems, including Type I ultrapure polishers, RO/DI combinations, EDI modules, UV-photooxidation, and sub-micron final filters. Designed for hospitals, research labs, biotech, pharmaceutical compounding pharmacies, dental clinics, and clinical laboratories, our systems ensure consistent water quality, protect expensive instrumentation, reduce downtime, and help maintain regulatory compliance. Choose from benchtop, under-bench, and centralized systems with real-time resistivity monitoring, automatic sanitization, and low-maintenance consumables. Find the right medical and laboratory water filtration solution for your facility today.

Superior Medical & Laboratory Water Purification Systems Ensuring Uncompromising Purity for Critical Healthcare and Research Applications

Crystal Quest Advanced Medical Water Filtration & Purification Systems Transforming Healthcare with Uncompromising Water Purity

In the evolving landscape of healthcare, advanced medical water filtration stands as a cornerstone of patient care and research integrity. Crystal Quest engineered filtration systems produce four distinct grades of water—Type I, II, III, and IV—each tailored to meet specific clinical and research requirements. From ultrapure water for critical analytical processes to cost-effective solutions for reducing contaminants, and pre-treatment feed water for deionization systems, we offer unparalleled solutions. Learn how our cutting-edge technologies not only enhance the accuracy of your medical procedures but also establish a benchmark in water purity. Here, at the intersection of healthcare and technology, we empower you to provide the best patient care.

  • Type I Water: The Purest Grade

    Referred to as ultrapure water, this water quality level boasts a resistivity of 18.2 MΩ-cm. Despite such purity, it might still harbor organic pollutants, endotoxins, and nucleases which don't impact resistivity readings. Consequently, additional purification methods are needed to remove these contaminants.

  • Type II Water: The Ideal Lab Companion

    Also recognized as general laboratory-grade water, Type II water has a resistivity range of 1-15MΩ-cm. Produced via a blend of reverse osmosis and ion exchange technologies (including electrical ion exchange or EDI), this water is optimal for buffer and media production, general chemistry, and spectrophotometry.

  • Type III Water: Cost-Effective Purity

    This primary grade pure water leverages carbon filtration and RO technology. It offers an affordable solution for decreasing water contaminants, removing up to 99% of them. RO facilitates the flow of water from a diluted solution through a semipermeable membrane towards a more concentrated one.

  • Type IV Water: The Practical Pre-Stage

    Type IV water is the lowest grade of purified water used in laboratories. It is primarily used for non-critical applications and utility tasks where purity requirements are minimal. This type of water is economical and suitable for applications where the presence of impurities does not affect the results or processes.

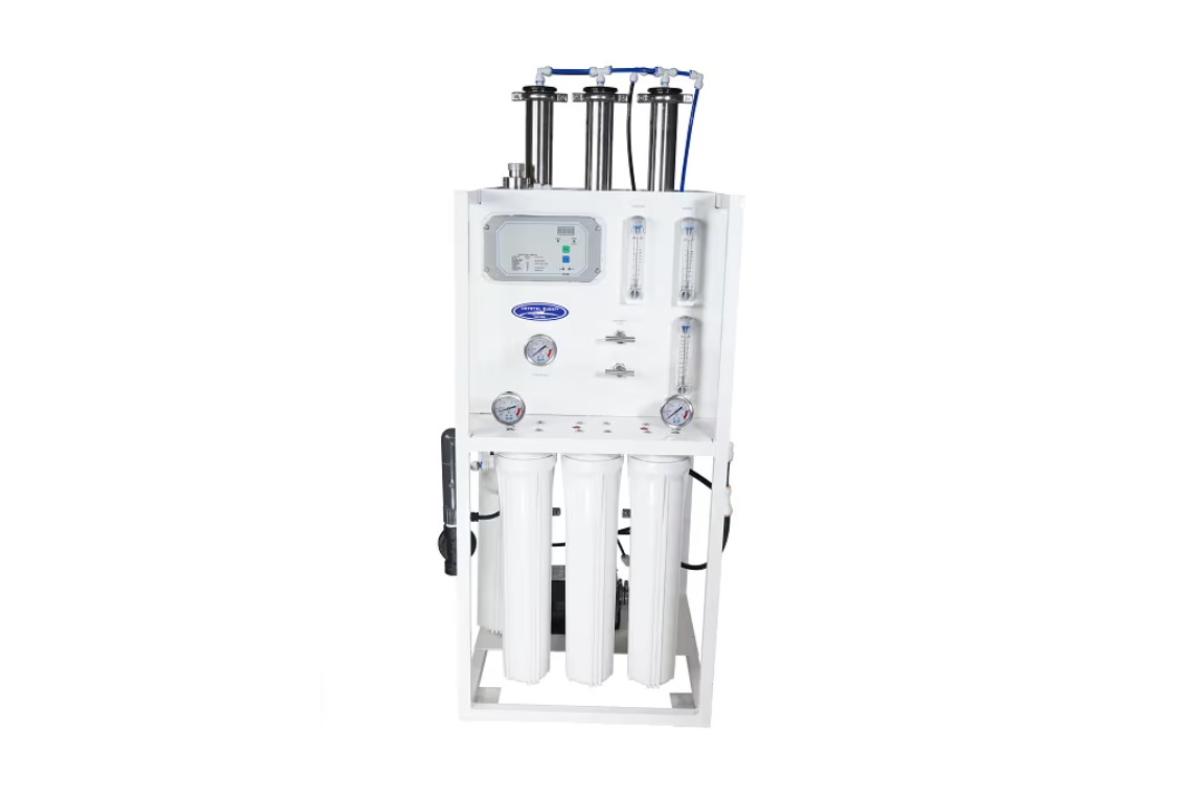

MedWater Low-Flow Reverse Osmosis (200-400 GPD)

  • Customizable to Meet your Business Needs: Crystal Quest offers versatile and customizable commercial reverse osmosis systems to cater to the specific requirements of your business.
  • Easy Installation: Our Low-Flow RO Systems are shipped fully assembled, ensuring a hassle-free and straightforward installation process.
  • Factory Tested for Quality Assurance: Each membrane system undergoes rigorous in-house testing to ensure optimal quality, performance, and reliability.
  • High-Quality Components: Crystal Quest systems incorporate long-lasting parts, filters, and membranes, guaranteeing durability and consistent performance.
  • Ideal for Low-Flow Applications: Designed to provide 200-400 gallons per day, our Low-Flow Reverse Osmosis Systems are perfect for businesses with lower water flow rate needs.
  • Comprehensive Filtration: These systems feature a multi-stage filtration process, including a sediment filter, carbon block, and our signature SMART filter, ensuring the removal of impurities and contaminants.

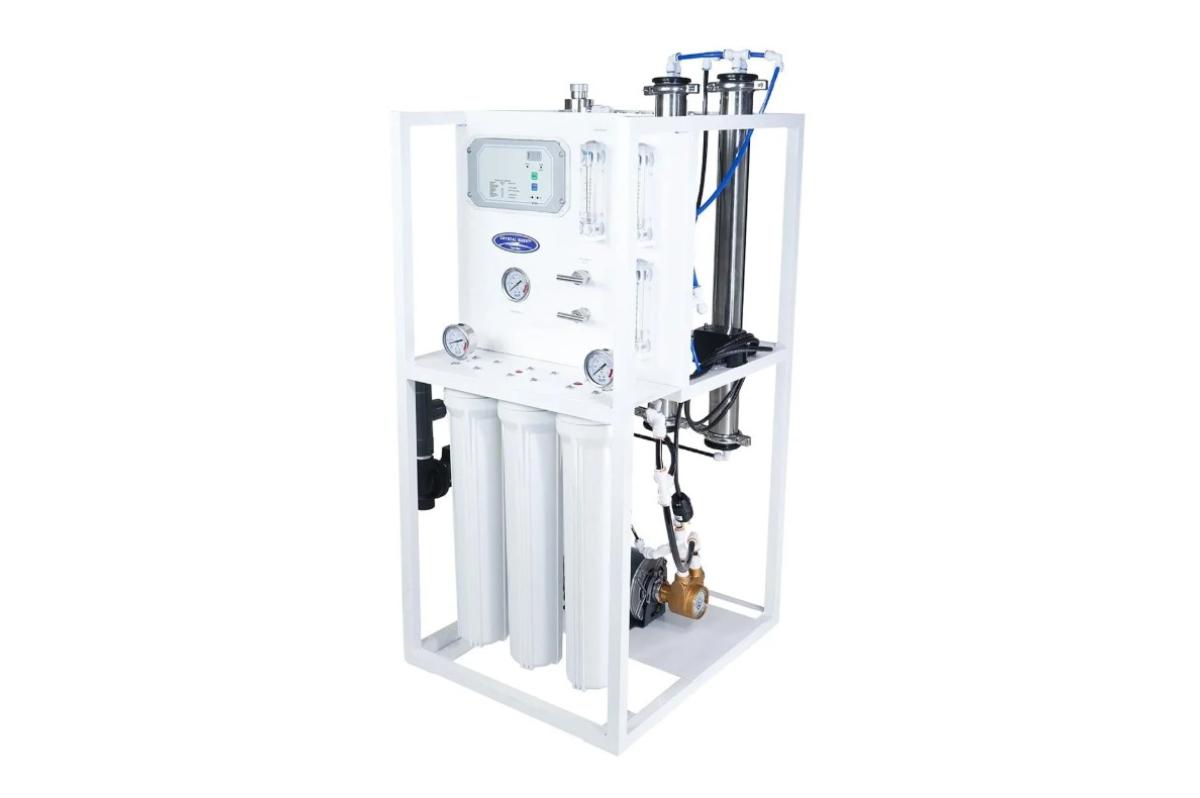

MedWater Mid-Flow Reverse Osmosis (500-7000 GPD)

Our Mid-flow Commercial Reverse Osmosis Systems are engineered for optimum performance in medical and laboratory applications, with output capabilities ranging from 500 to 2500 GPD.

  • Robust Construction: Built with corrosion-resistant aluminum, white powder-coated for enhanced durability, and lightweight.
  • Efficient Membrane: Stainless steel membrane housing encasing a TFC membrane ensures high flow and maximal impurity rejection.
  • High-Pressure Pump: A brass rotary vane pump, designed for continuous use, comes with built-in protection against feedwater loss.
  • Smart System Monitoring: Integrated SWP flow meter displays permeate and concentrated water flow, with pressure gauges indicating system operations.
  • Automatic Safety Switches: Includes low-pressure and high-pressure tank switches, and a 1” feed solenoid valve, all designed to automatically shut off under specific conditions, preventing wastage and damage.
  • Secure Connections: Features push/pull fittings equipped with locking safety clips for secure attachments.

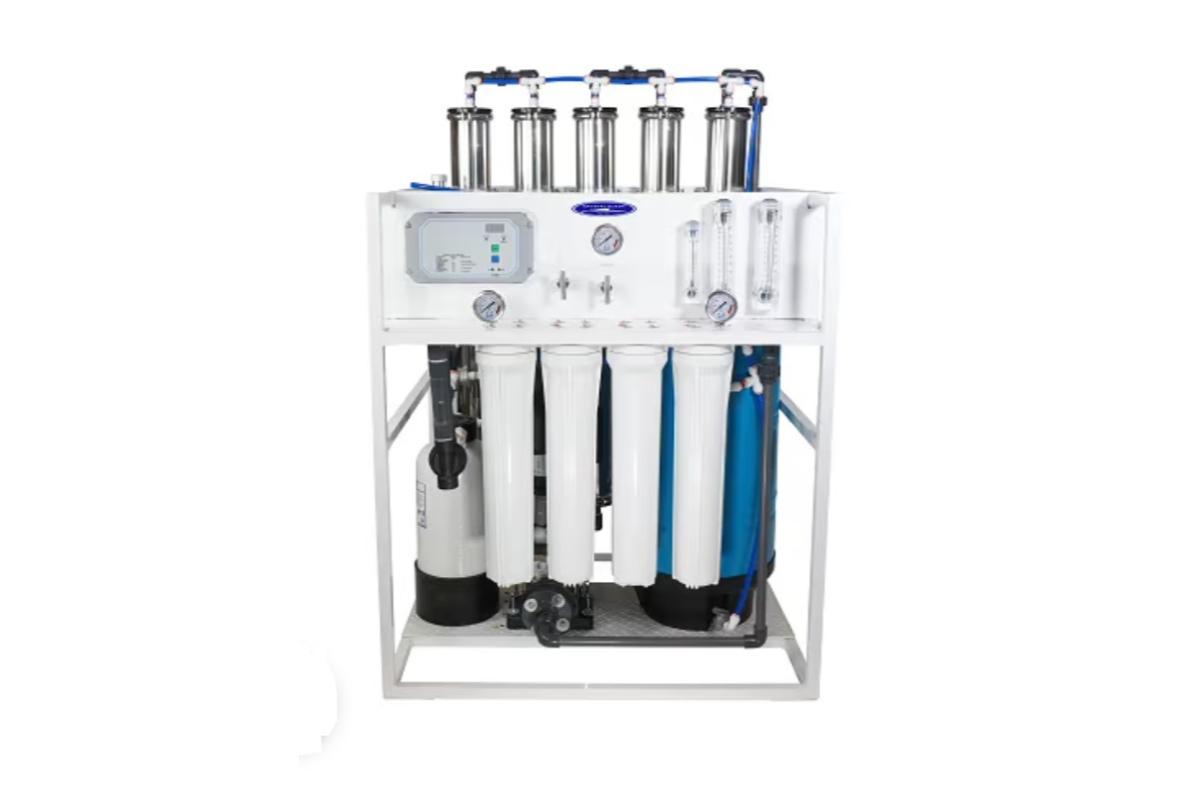

MedWater High-Flow Reverse Osmosis (10,000 - 50,000 GPD)

High-flow Commercial Reverse Osmosis Systems are built for superior performance in medical and laboratory applications, with output capabilities ranging from 4000 to 10,000 GPD.

Standard Features:

  • Advanced Membranes: Uses Thin Film Composite Membranes for exceptional water purification.
  • Efficient Pump and Housing: Stainless Steel Membrane Housings and a robust Centrifugal Pump ensure reliable operations.
  • Comprehensive Filtration: 9x48 Vessel with .5 Micron Zeolite and Coconut Shell Granulated Activated Carbon for optimal turbidity and sediment removal.
  • Intelligent Shut-off Switches: Equipped with low and high-pressure shut-off switches, and an auto feed shut-off for enhanced safety and efficiency.
  • System Monitoring: Features like feed pressure gauges, system pressure gauges, permeate flowmeter, concentrate flowmeter, and permeate and feed TDS displays for comprehensive tracking.
  • User-friendly Design: Heavy-duty coated aluminum frame with cleaning ports and a C-150 Microprocessor Controller for easy use and maintenance.
