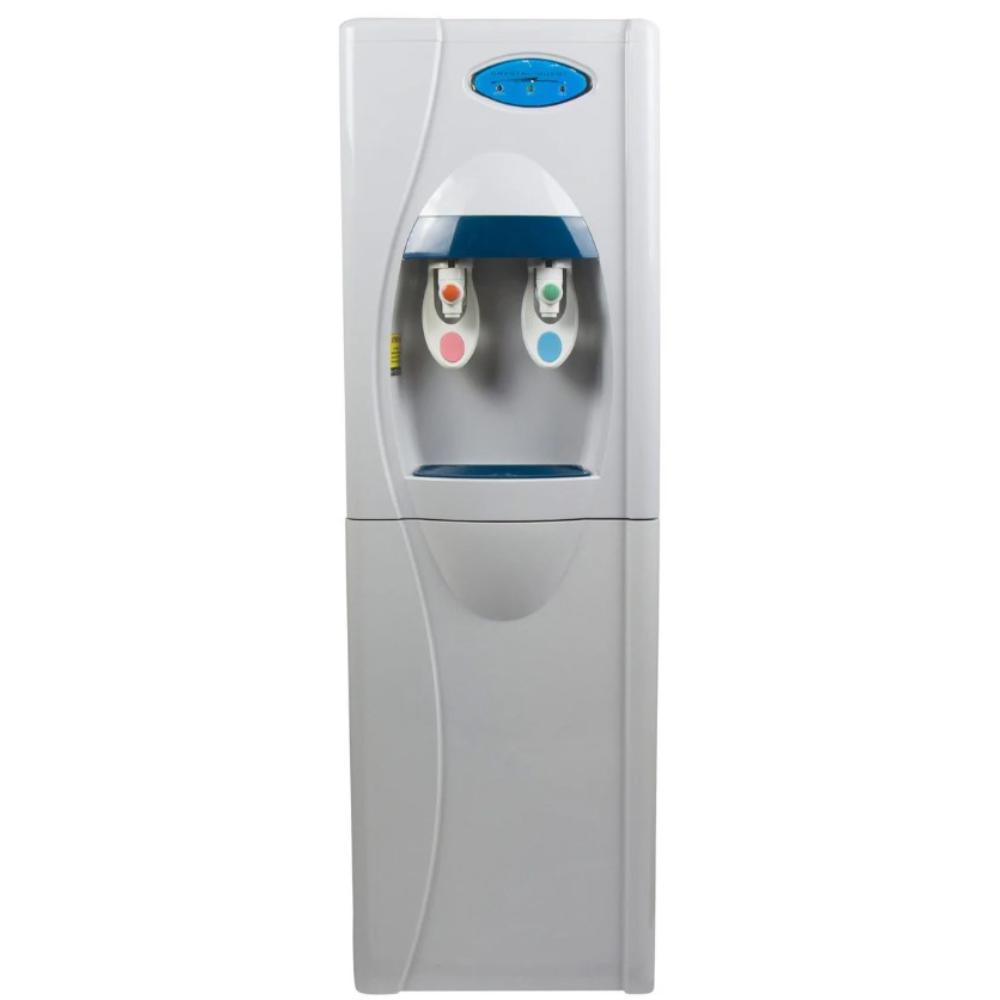

Crystal Quest Hybrid Ultrafiltration Bottleless Water Cooler
Crystal Quest Hybrid Ultrafiltration Bottleless Water Cooler
SKU:CQE-WC-00900
Product Ships in 5-7 Days
The Crystal Quest water cooler epitomizes efficiency and convenience, catering to the diverse hydration needs of teams, families, and workplaces seeking consistent access to hot and cold water. Featuring a substantial 3.2-gallon reservoir, this premium bottleless cooler eliminates the inconvenience of bulky plastic jugs and delivery logistics. The stainless steel tanks ensure durability and optimal temperature retention, while adjustable cold water settings allow users to customize their experience. Additionally, the unit is designed to be UF-ready and supports Reverse Osmosis, delivering ultra-purified water for peace of mind. With an automatic float valve and temperature control system, the cooler minimizes maintenance efforts, allowing users to focus on what truly matters, thus making it an invaluable addition to any environment requiring reliable hydration solutions.
Couldn't load pickup availability
Share
Additional Product Information
UltraFiltration (UF)
What is UF? In the UF process, a fine membrane (.02 micron) partially addresses micro-organisms with out waste water to lower the Total Total Suspended Solids.
If you don’t have the additional RO membrane system, some TSS will be left behind. To eliminate a majority of TSS, a Reverse Osmosis membrane is suggested.
Reverse Osmosis (RO)
UltraFiltration acts as the pre-treatment for the next stage of the even finer RO Treatment. RO is a water purification technology that uses a semipermeable membrane to remove larger particles & an array of contaminants. Similar to UF, although RO uses a different membrane. When
water goes through the RO Membrane, leftover water hardness & contaminants that are too big to go through the UF & RO membrane will wash out through your drain line. (In the back of the water cooler, the system will connect to your kitchen drain for the wastewater.) The initial UF membrane is to help reduce the amount of Total Suspended Solids before the RO Treatment so less strain is put on the RO membrane.
Specifications
- Weight: 60 lbs.
- Dimensions: (D) 14.5” x (W) 14 3/4” x (H) 39.25”
- Total reservoir capacity: 3.2 gallons
- Heating power: 500W 6.2 Amps
- Cooling power: 112W 2.4 Amps - TOTAL NEEDED 612W 8.6 Amps
- Hold water tank volume: 1.45 gal
- Hot water tank volume: 0.5 gal
- Cold water tank volume: 1.2 gal
- Cooling capacity: 1.95 gal per hour 35-50°
- Heating capacity: 1.5 gal per hour 185°F
- Voltage: 110V-120V 50/60Hz
- Pressure range: 30-60 psi (2.1-4.1bar)
- Optimum service flow: 0.50 GPM at 60 psi (1.1 lpm at 4.1 bar)
Features
- Built-in filtration system
- Separate hot/cold power switch
- Automatic heating shut-off when hot temperature is reached
- Automatic float valve
- High efficiency sealed compressor cooling system
- Adjustable cold water
- Type 304 stainless steel hot and cold water tanks

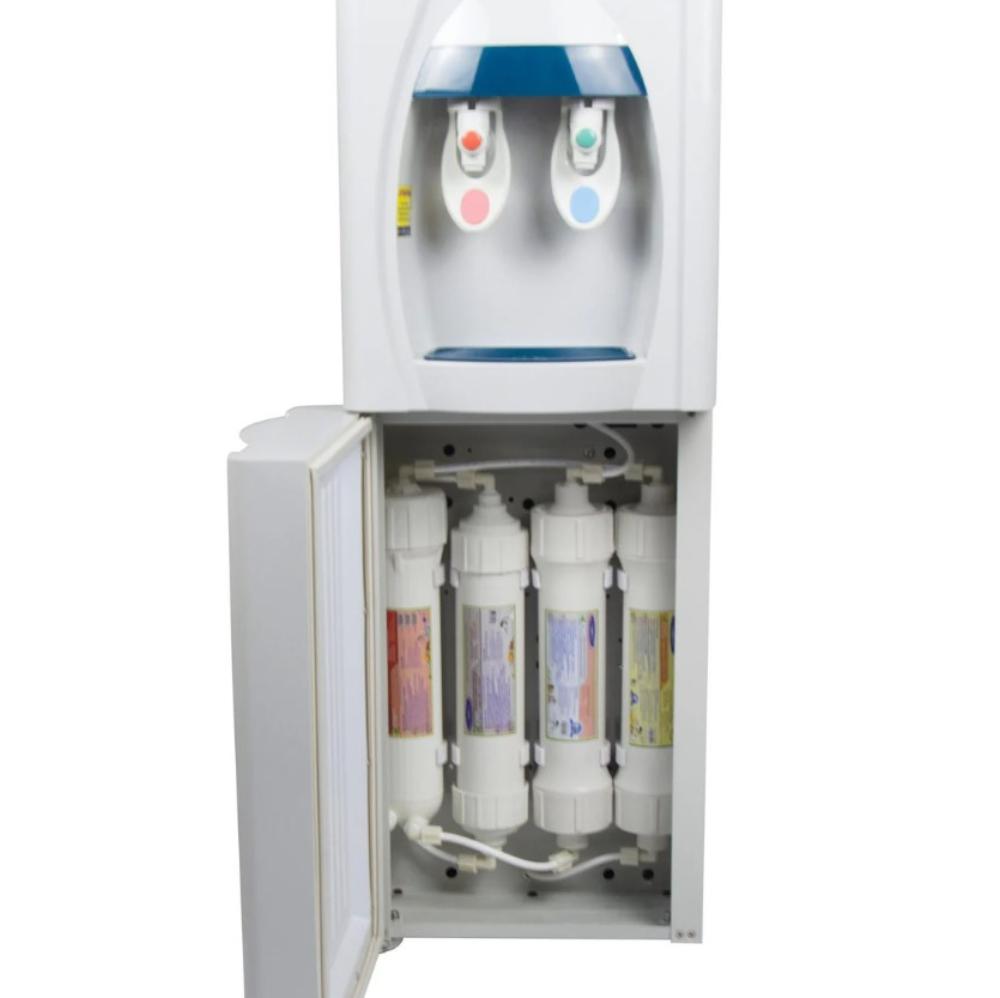

- Easy access front panel for service of Filter system
- Easy to use and easy to clean
