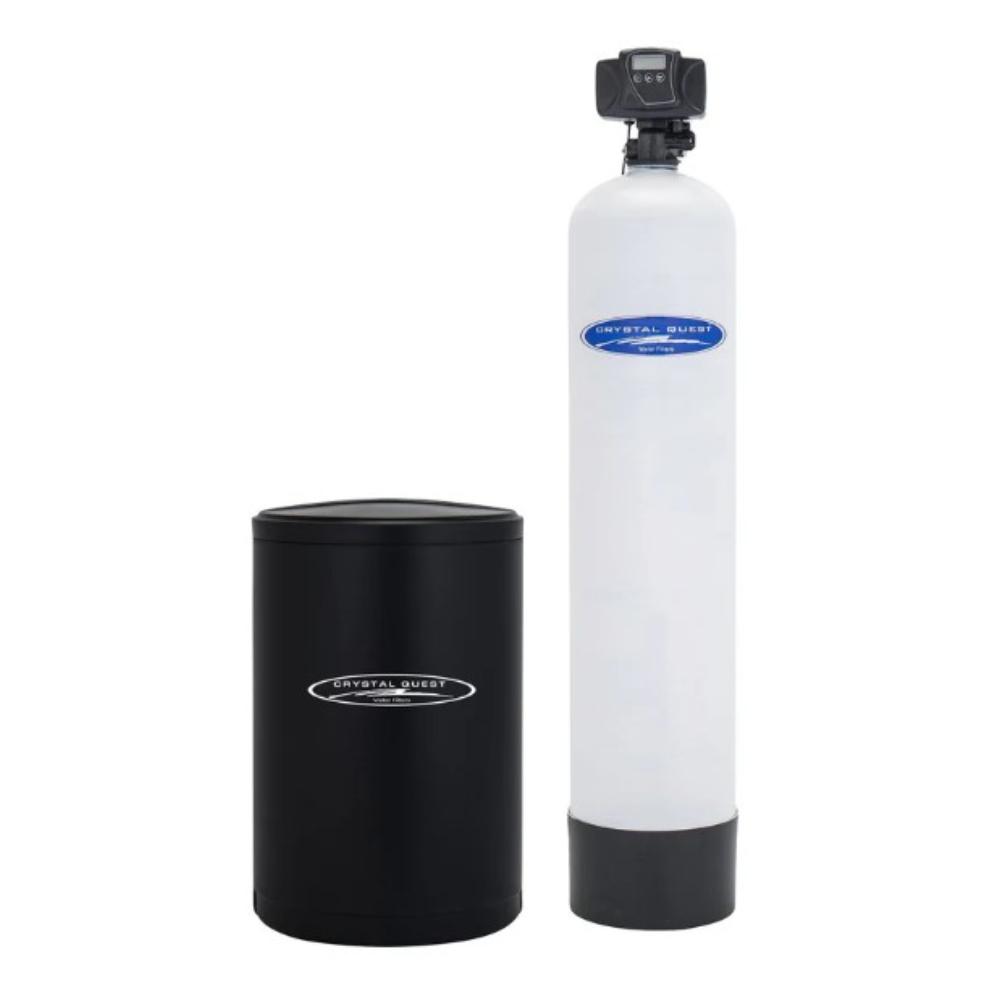

Crystal Quest Commercial Water Softener System (45,000 Grains) - Single 1.5 cu.ft.

Description

Water is hard when it contains minerals like calcium and magnesium. You may see staining on your sinks, tubs, showers, and clothing. You may also notice less lather from your shampoos and soaps and even a feeling of film on your skin. All these are symptoms of the need for softened water.

Hard water also causes a higher risk of limescale deposits in household water systems. The negative effect of limescale buildup is that pipes are blocked and the efficiency of hot boilers and tanks is reduced. This increases the cost of domestic water heating by about fifteen to twenty percent. Another negative effect of limescale is that it has damaging effects on household machinery, such as laundry machines. Water softening means expanding the lifespan of household machines, and the lifespan of pipelines. It also contributes to the improved working and longer lifespan of solar heating systems, air conditioning units and many other water-based applications.

Water is softened or conditioned by replacing hard ions like calcium and magnesium with softer sodium or potassium ions. Water softeners must be regenerated** regularly, renewing their ability to remove hardness from water. Time-initiated or solid state softeners regenerate at a fixed time when their softening capacity is predicted to be low. Demand-initiated softeners regenerate automatically when they sense their capacity is low.

Water Travels Through 3 Stages of Filtration

• Stage 1 - Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.
• Stage 2 - Water flows through an ion exchange mineral tank and brine water conditioner.
• Stage 3 - Water flows through a 20” solid carbon cartridge for removing volatile organic carbon compounds (VOCs), insecticides, pesticides and industrial solvents.*

*If present in the water

**Frequent regeneration with sodium chloride (salt) or potassium chloride required.

Additional Product Options

• 12 GPM UV Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
• Leak Detector Valve: Used to detect a water leak within a water filter system and shuts down the water supply to prevent flooding.
• Vacuum Breaker: Recommended to be installed inline ahead of water filter systems as a precaution against the rare occurrence of negative pressure (a vacuum) in the water line which can cause damage to the filter tanks and housings.
• Metered Valve: The systems come standard with a timer valve which runs the backwashing schedule on a set number of days. (For example, every 7 days). The metered valve will run the backwashing based on a set number of gallons. (For example, 3,000 gallons).
• Oxidation System: Utilizes ozone for efficient water oxidation, improving water quality.

5600 Automatic Control Head

Elevate your water treatment systems with our advanced 5600 Automatic Control Head Series, designed to cater to a broad range of filtration and softening system requirements. Our series is meticulously crafted, offering three distinct models to ensure your water treatment needs are met with precision and reliability.

Features:

• Large and vibrant LCD Display
• Caters broad range of filtration & softening
• Time clock or metered function
• Valves use all brass material
• Accuracy range from 0.25 to 15 GPM

Specifications:

Service Flow (GPM) – 9-11

Backwash Flow (GPM) - 4

Pipe Size– 1"

Electronic Control Valve - 5600

Filter Media Volume - 1.5 ft³

PSI Range- 35-60

Grain Capacity- 45,000

Brine Tank Capacity - 130L / 36G

Mineral Tank Size (in.) - 10" x 54"

Brine Tank Dimensions - 18" x 33"

Space Required (in.) (L x W x H) - 30" x 20" x 64"

Quartz (lbs.)- 15
