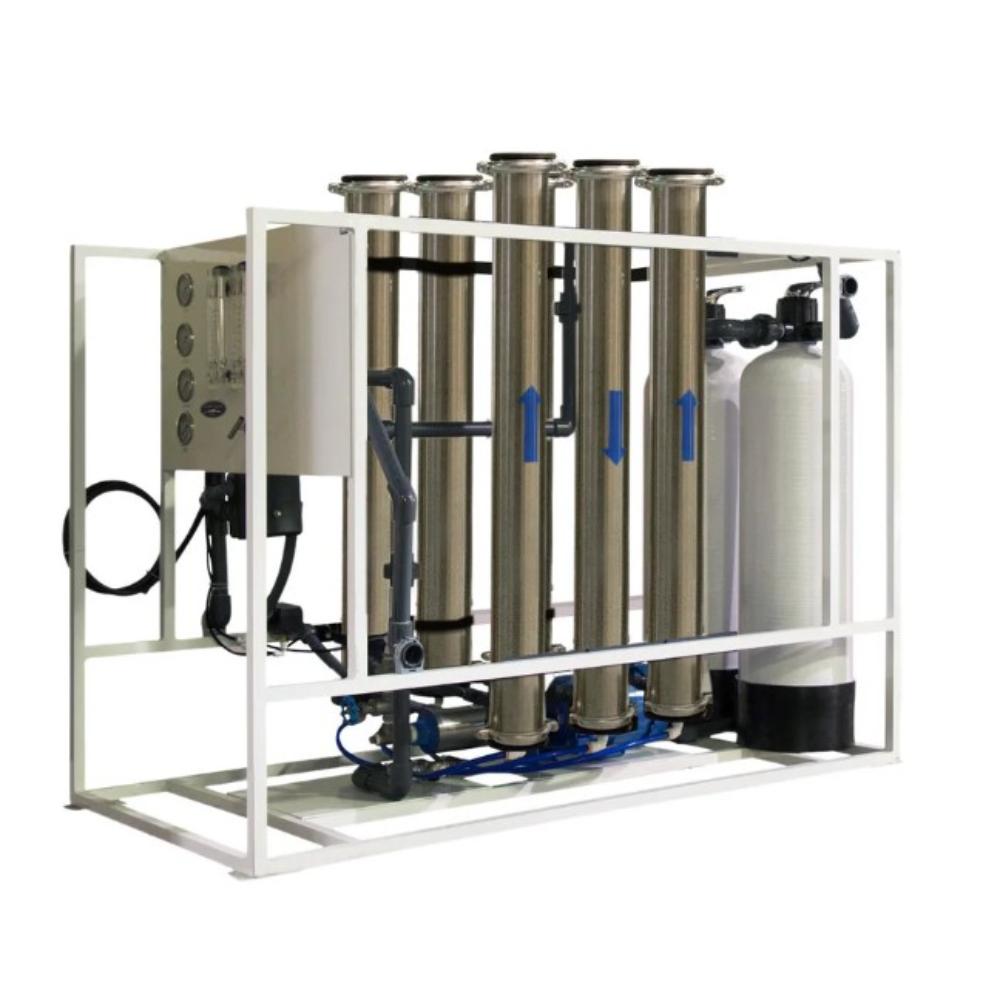

Crystal Quest 10,000 GPD Commercial Reverse Osmosis Water System
Crystal Quest 10,000 GPD Commercial Reverse Osmosis Water System
SKU:CQE-CO-02031
Product Ships in 5-7 Days
The Crystal Quest 10,000 Gallons Per Day Commercial Reverse Osmosis System is a powerful, high-capacity purification solution designed for businesses and commercial applications. This robust system delivers ultra-pure water by removing up to 99% of dissolved solids, PFAS, arsenic, nitrates, lead, fluoride, chlorine, and many other contaminants.
Key Features:
- High production rate of 10,000 gallons per day
- Heavy-duty commercial-grade components
- Multi-stage pre-filtration for maximum membrane protection
- Efficient reverse osmosis membrane technology
- Easy maintenance and filter replacement
- Powder-coated aluminum frame for durability
- Made in the USA with high-quality parts
Couldn't load pickup availability
Share
Additional Product Information
Optional Features:
- Stainless Steel Housings: Two 2.5” x 21” PuroTech Stainless Steel Membrane Housings 3/8” FNPT
- TDS Meter: One Panel Mount TDS Meter, Provides you with accurate readings of the feed and product water quality.
- Float Switch: One Mechanical Float Switch, For atmospheric storage tank applications.
- Flow Meters: One Product (0-2 GPM) & One Waste (0-5 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio and monitor systems performance.
- Concentrate Re-Circulate: This feature offers a higher recovery rate for the system by taking a % of the waste water and feeding it back into the system.
- Additional cost will apply to listed price for custom modification based on water laboratory test report.
Specifications:
Station Design
Gallons Per Day: 10000 @ 77° F
Dimensions (Approx.): 49" x 33" x 54"
Weight (Approx.): 385 lbs.
Concentrate Re-Circulate: Optional
Auto Flush: Optional
Element Size (in.): 4040 TFC HF1
Elements (Qty.): 6
Motor HP: 3
Voltage: 110 or 220 Volts AC
Hertz: 60 or 50 cycles
Feed Connection: 2"
Product Connection: 1"
Waste Connection: 1"
Minimum Feed Pressure: 45 psi
Minimum NaCl - % Rejection: 96%
Minimum Feed (GPM): 14
Maximum Hardness: 15 Grains / Gallon
Maximum TDS: 2000 ppm
Operating Pressure: 150 psi
Maximum NaCl - % Rejection: 98.5%
Maximum Feed (GPM): 30
pH Range: 3 - 11
Maximum Temperature: 105° F
Membrane: Six 4" x 40" TFC HF1 Membranes, For rejection of impurities and high flow.
Membrane Housing: Six 4" x 40" Champ Membrane Housing, Features a patented design and requires no tools for servicing.
Pump & Motor: One Gould's 3 HP Multistage Pump and Motor, 110 or 220 volts AC, 60 or 50 hertz, single Phase, designed for continuous high pressures.
Frame: Aluminum, White Powder Coated, Corrosion resistant, and light weight.
Sediment Filter: One 18" FSI Bag 10 Micron Sediment Filter, Removes sediments and protects the system.
Sediment Filter: One 4.5" x 20" 5 Micron Polyethylene Sediment Filter, removes sediments and protects the system down to 5 microns.
GAC/ERA Filter: One 4.5" x 20" Coconut Shell GAC/Eagle Redox Alloy Filter.
Filter Housing: One 4.5" x 20" Big Grey Double O-Ring Filter Housing, Offers durability and improved sealing capabilities.
Pressure Gauges: Two 2.5" Gauges, 0-300 PSI, Panel Mount, Glycerin Filled, and Two 1.5" Dry Gauges, 0-160 psi, Top Mount, For monitoring the system's operating pressure, the filter and carbon operating pressure.
Low Pressure Switch: One McCann's Low Pressure Switch Safety, Device to protect the pump from running dry when there is insufficient feed water pressure.
High Pressure Switch: One Square D High Pressure Switch, Automatically starts when the tank pressure falls below 40 psi and stops when the pressure reaches 60 psi
Solenoid Valve: One Solenoid Valve with manual override, 110 or 220 Volts AC, 60 or 50 Hertz, Assists with the on/off functionality of the system.
Manual Flush Valve: One 1/2" Brass Needle Valve, Regulates the product to waste ratio (systems recovery).
Computer Controller: One Rotrol S-150 Computer Controller, 110 or 220 volts AC, with built-in TDS monitor, pre-treat lockout, tank full contacts, low pressure monitoring, and alarm.
Flow Meters: One Product (0-10 GPM) & One Waste (0-20 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio, and monitor systems performance.
TDS Meter: One Panel Mount TDS Meter, provides accurate readings of the feed and product water quality.
Easy Maintenance & Operation: CRYSTAL QUEST® commercial reverse osmosis systems feature a compact design and have all of their components strategically located for easy access and inspection.
