Crystal Quest

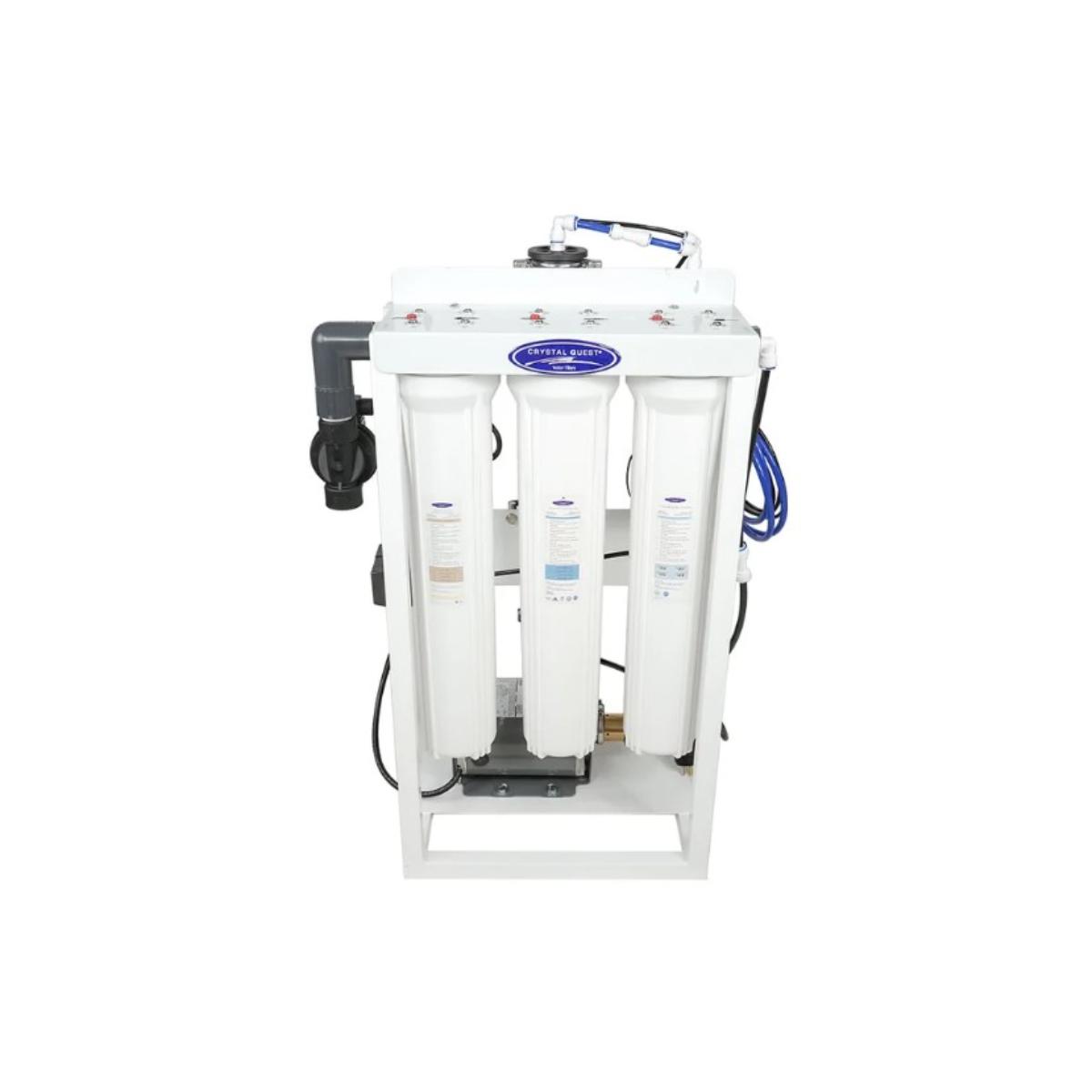

Crystal Quest 300 GPD Whole House Reverse Osmosis System with 165 Gallon Water Tank

SKU:CQE-CO-02023K165

$3,967.95 USD

Sale Contact us for more details

Shipping calculated at checkout.

Product Ships in 5-7 Days

Enjoy purified water from every faucet of your home.

The Crystal Quest 300 GPD Whole House Reverse Osmosis System with 165 Gallon Water Tank uses advanced reverse osmosis technology to effectively remove up to 99% of contaminants and dissolved solids from your entire home’s water supply. This powerful filtration process delivers clean, great-tasting, ultra-pure water to every faucet, shower, and appliance throughout your home.

Choose Pump Type Brass Rotary Stainless Steel Rotary

View full details

Additional Product Information

The Ultimate Filtration Experience

The Crystal Quest Whole House Reverse Osmosis System uses advanced reverse osmosis technology to effectively removes contaminants and dissolved solids from your home’s water supply.

This powerful filtration process delivers clean, refreshing, and great-tasting water to every faucet, shower, and appliance throughout your home.

Proudly manufactured and factory-tested in the USA, this water filtration system meets the highest quality standards. It features high-quality, long-lasting components, filters, and membranes that are easy to access and replace, ensuring reliable performance and simple maintenance for years to come.

The Crystal Quest Inline Reverse Osmosis System is designed to deliver pure, high-quality water from your storage tank to every faucet, shower, and appliance throughout your home.

Available in capacities ranging from 300 to 7,000 gallons per day, this powerful system ensures a consistent supply of ultra-pure water for drinking, cooking, and everyday use.

Key Benefits of Crystal Quest Whole House RO Systems

Compact, Space Saving
Provides bottled-quality water from every tap
Protects plumbing and appliances from scale and contaminants
Easily Accessible Components
Reduces reliance on bottled water
Expandable and Lightweight Design
Fully Equipped and Customizable
Low Operational Costs
Low cost of Maintenance
Easily Maintenance and servicing
Factory Tested and Preserved
CE Compliant
Made in the USA
Scientific World Products ISO Certified Components

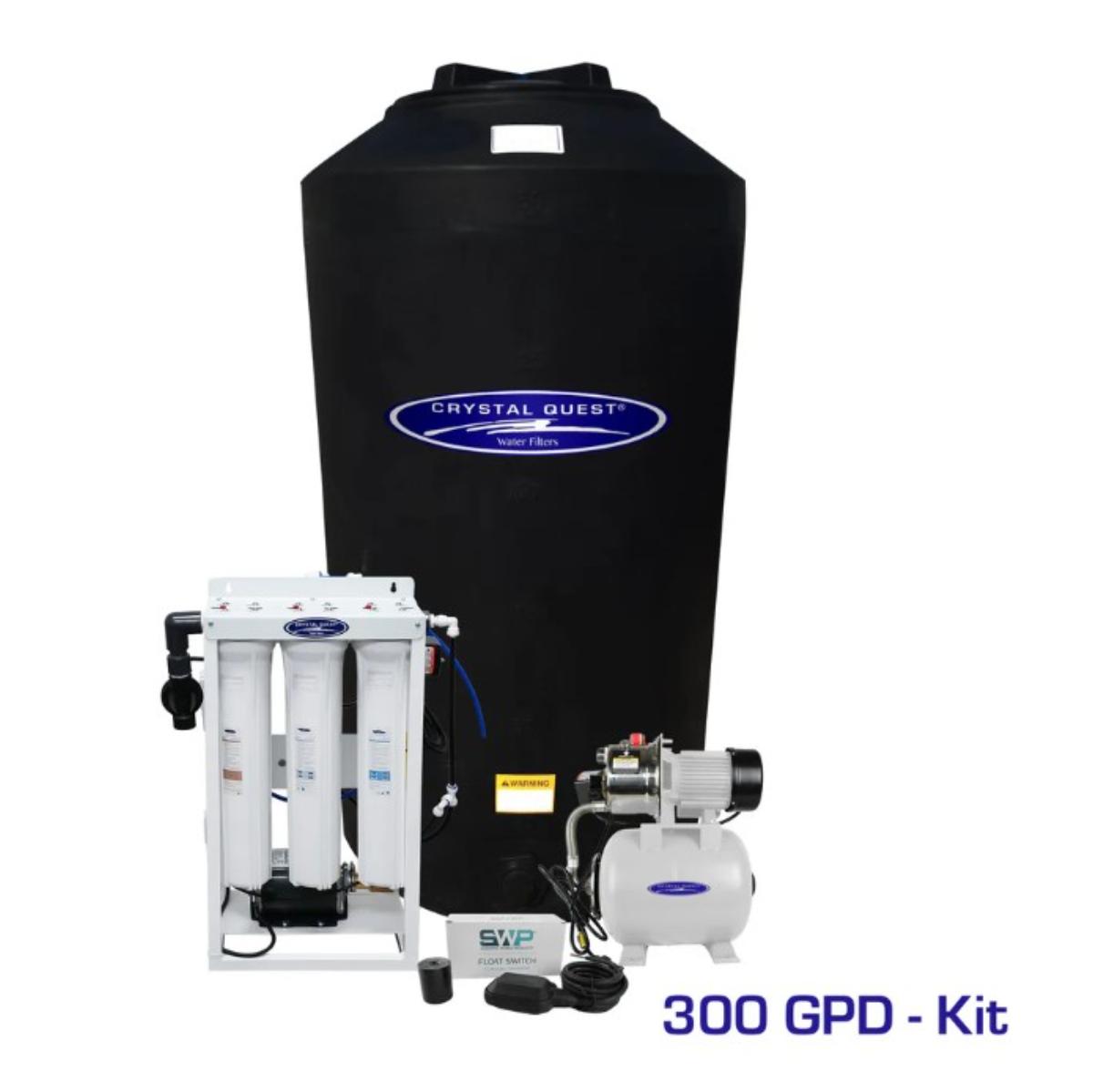

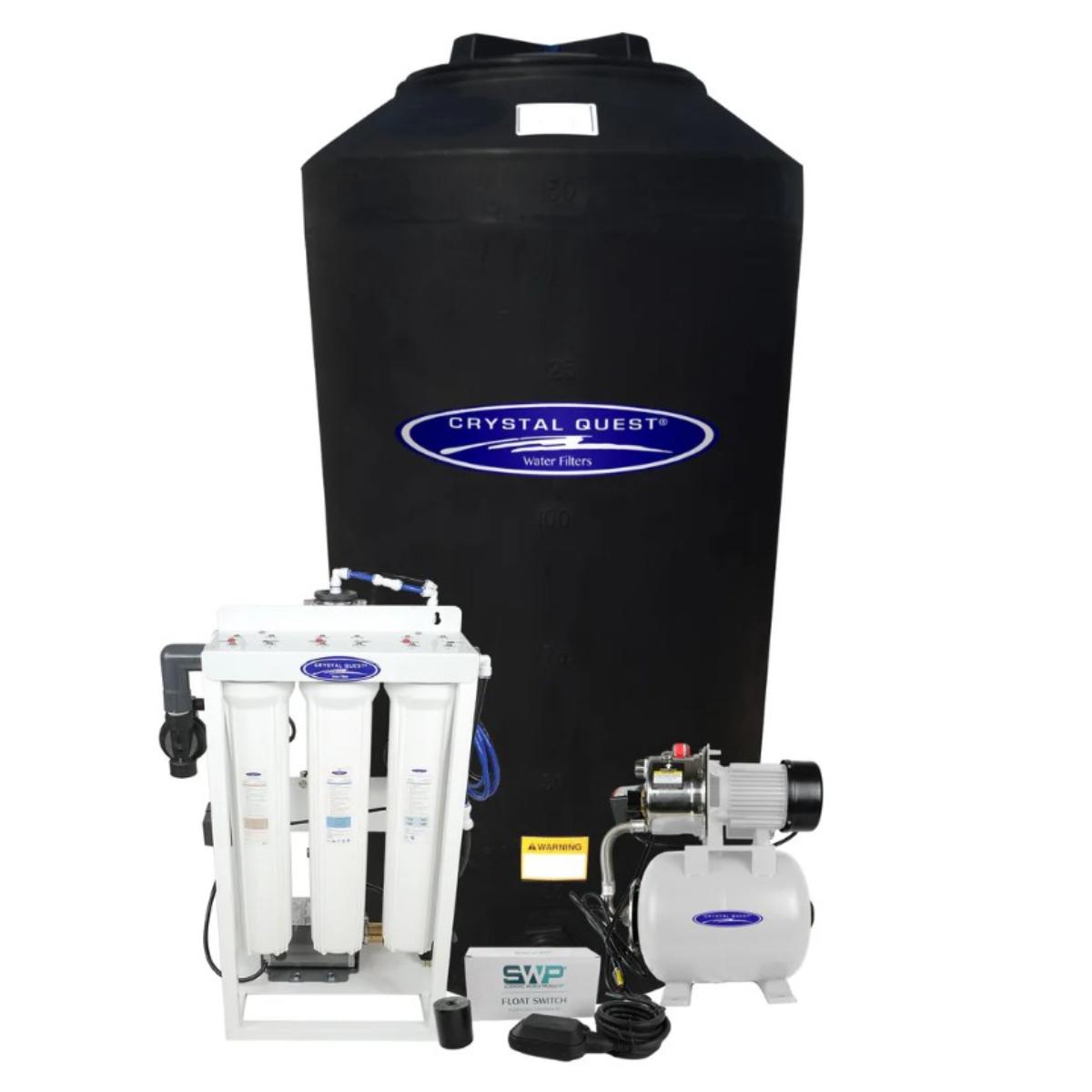

Storage Tank Kit Components

The RO System - A commercial-grade RO System ranging from 200- 7,000 GPD. Every system is equipped with prefiltration to extend the life of the membranes.
Water Tank - Water is stored in an atmospheric water storage tank (165, 220, or 500 gallons) that is sized depending on your system, needs and space.
Pump - As water is used within your home, it will be pumped from the tank as needed.
Float Switches - Used within your water tank, this regulates when your RO System needs to cut on and off depending on the water level in your tank.

Additional shipping charges may apply for orders with 500-gallon storage tanks

Optional Add-Ons

12 GPM UV Water Sterilizer

For added protection, we offer a premium UV sterilizer to prevent microbiological contamination.

Alkalizing Postfilter Options

With various options to choose from, enhance the alkalinity of your water before it enters your home with the added benefits of a natural Alkalizing, Mineralizing, and Oxidation Whole House filter.

Specifications

Operating Specs*

Weight (lbs) 50-265
Motor (hp) 0 - 1.5
Voltage 110V/220V*
Hertz 50 or 60
Feed Connection 3/8" or 1"
Product Connection 3/8" or 1"
Waste Connection 1/4", 3/8", or 1"
Min. Feed Pressure (psi) 45
Min. NaCl Rejection 96%
Max. NaCl Rejection 98.5%
Min. Feed (gpm) 1-10
Max. Hardness (grains/gallon) 15
Max. TDS (ppm) 1000-2000
Operating Pressure (psi) 50-150
pH range 3-11

*Please refer to the operating manual of each specific system for exact values. All systems come standard as 110V unless otherwise requested.

Dimensions (L x W x H)

300 GPD 17” x 23” x 35”
400 GPD 17” x 23” x 35”
500 GPD 18” x 24” x 49”
750 GPD 18” x 24” x 49”
1,000 GPD 18” x 24” x 49”
1500 GPD 18” x 24” x 49”
1,800 GPD 20” x 24” x 51”
2,500 GPD 18” x 24” x 49”
4,000 GPD 30” x 36” x 59”
5,000 GPD 30” x 36” x 59”
7,000 GPD 30” x 36” x 59”

Remineralizer System

In order to provide the best quality of water for our customers, we are offering an optional add-on to our whole house reverse osmosis system. This specially designed unit, based on your Gallons Per Day (GPD) consumption, adds essential minerals back into your purified water and adjusts its pH to prevent any potential damage to plumbing/fixtures and ensure healthier and tastier consumption. The table below gives an overview of our remineralizer system options suitable for different consumption needs and preferences for water alkalinity.

300 - 2500 GPD Single Big Blue Alkalizer/Remineralizer
4000 - 5000 GPD Remineralizer System (1.5 cubic feet)
7000 GPD Remineralizer System (2.0 cubic feet)

(Customers wanting highly alkaline water have the option to use a larger remineralizer system than recommended.)

Pure reverse osmosis water contains no minerals and can sometimes be slightly acidic. Water with a pH below 6.4 is not recommended for human or livestock consumption. The use of a remineralizer as a post treatment will enhance the pH and alkalinity of the water and avoid potential damage to plumbing/fixtures caused by acidic water.

Highly alkaline water may have a taste that us unpleasant to some. This taste can be described as a plastic, metallic, chlorine or fish like taste.

Storage Tank Options

Storage Tank Sizes

200-300 GPD 165 Gallons (31"D x 56" H)
500-2,500 GPD 220 Gallons (42"D x 44" H)
4,000-7,000 GPD 500 Gallons (48"D x 73" H)

*When considering the size of the tank, measure the door opening before installation.

Home Water Usage

Flow Rate Bathrooms

200-300 GPD 1 - 1.5
500-2,500 GPD 1 - 4
4,000-7,000 GPD 5+

Crystal Quest 300 GPD Whole House Reverse Osmosis System with 165 Gallon Water Tank
